3U VPX Development Chassis
Features:|
Features: |
|
| All-aluminum construction | |
| Air cooling | |
| Configurations are highly customizable for VPX modules | |
| Flexible accommodations with plastic card guides for pluggable boards | |
| or metal card guides for conduction cooled boards. | |
| Options: | 3U Open VPX 2-slot Backplane (BKP3-DIS02-15.2.8-n) |
| 3U Open VPX 3-slot Backplane (BKP3-CEN03-15.2.9-n) | |
| 3U VPX Power Backplane 2-slot | |
| 600 Watt ATX power supply | |
| Hardware for VPX conduction cooled boards | |
| VPX/ FMC front panels and filler panels | |
Specifications:
V-CG160
Features:
VPX Conduction Cooled Card Guide
Material: Aluminum
Length: 160mm. (Customization is available).
· Finish: Chromate or Gold alodine finish.
· Features: Fit Mapsuka’s chassis and cPCI conduction cooled chassis.
Specifications:

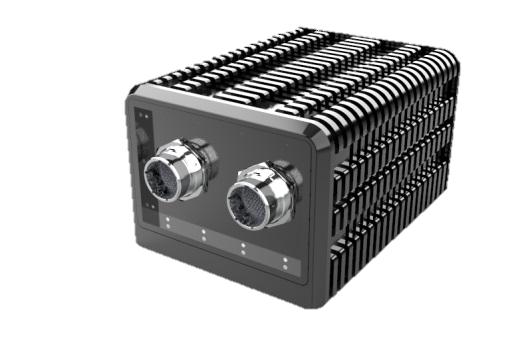

VPX Chassis
Features:- 1.Compliant to VITA 46.0 Baseline.
- 2.Compliant to VITA 62.
- 3.IOPEN VPX 65.0 Standard.
- 4.Rugged 3U Euro card form factor.
- 5.ESD Ground protection.
- 6.High-speed Multi-gig connector.
Specifications:
1.1 16 years.
1.2 1 oz. copper power and ground.
1.3 3.2 mm think PCB, FR4 or equivalent.
Profiles
2.1 BKP3-CEN03-15.2.9-n.
2.2 Slot 1 Compliant SLT3-PAY-2F-14.2.7.
2.3 Slot 2,3 Compliant SLT3-PER-1F-14.3.2.
Power Requirement
3.1 DC +12V
3.2 DC +5V
3.3 DC +3.3V
Temperature
4.1 Operating Temperatures: 0° to +60 °C
4.2 Storage Temperatures : -40° to +85 °C
Mechanical Dimension
5.1 Dimensions (WxH) : 130 x 140 mm
5.2 Customization is available.
