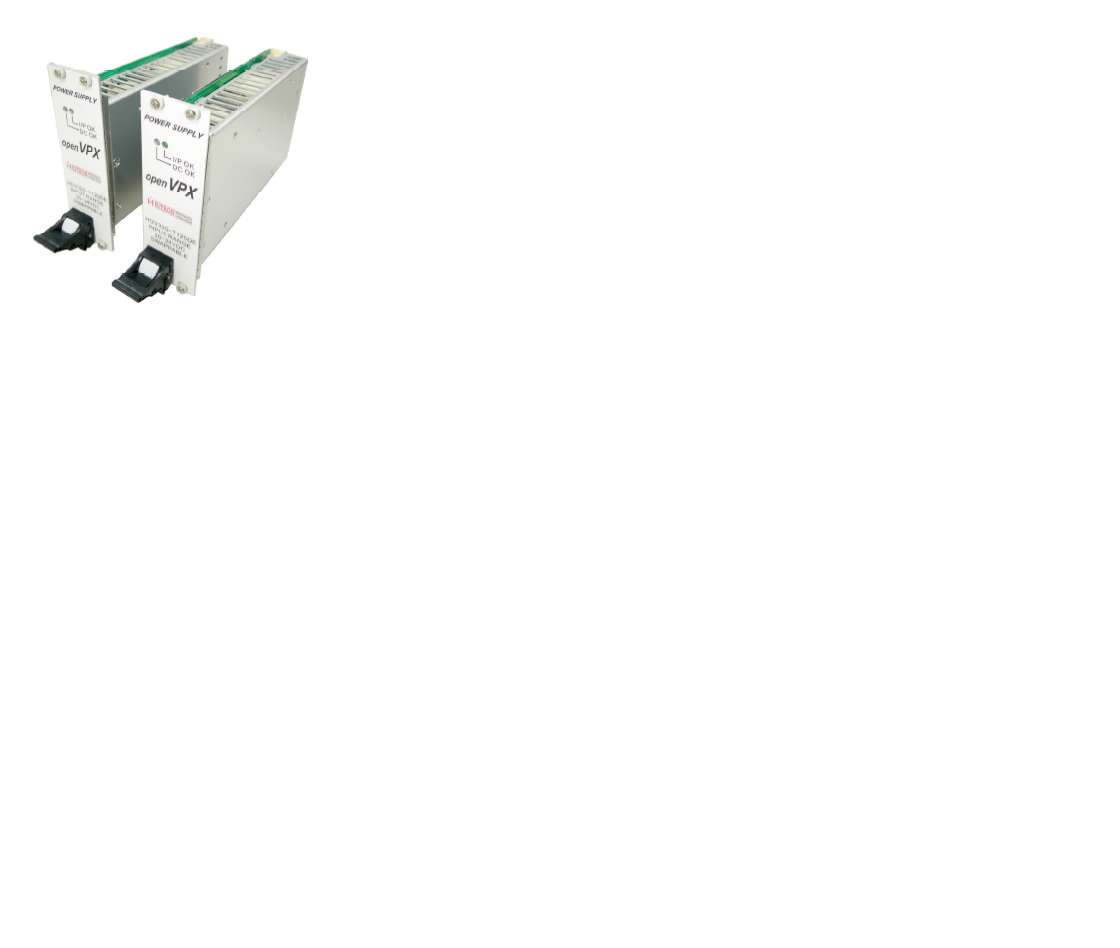

HAV1000(180304)

Features:
  • 1000 Watts VPX Switching Power Supplies HAV1000 Series
  • VITA 62 Compliant 6U 8HP or 10HP
  • VPX Power Supply
  • Wide Operating Temperature Range of -40°C to +85°C
  • Internal Or-Ing Diodes for N+1 Redundancy
  • Active Current Sharing
  • EMI meet EN 55032/ Class A
  • PMBus Interface for Status & Control
  • Using 125°C Long Life Solid Capacitors
HAV1000(180304)
Specifications:
  • Input Voltage: Typical 90-264VAC
  • Input Frequency: 47-63Hz
  • Input Current: 7.3A at 115VAC
    5.2A at 230VAC
  • Inrush Current: 37.2A (peak) at 230VAC
    10 Arms at 230VAC
download

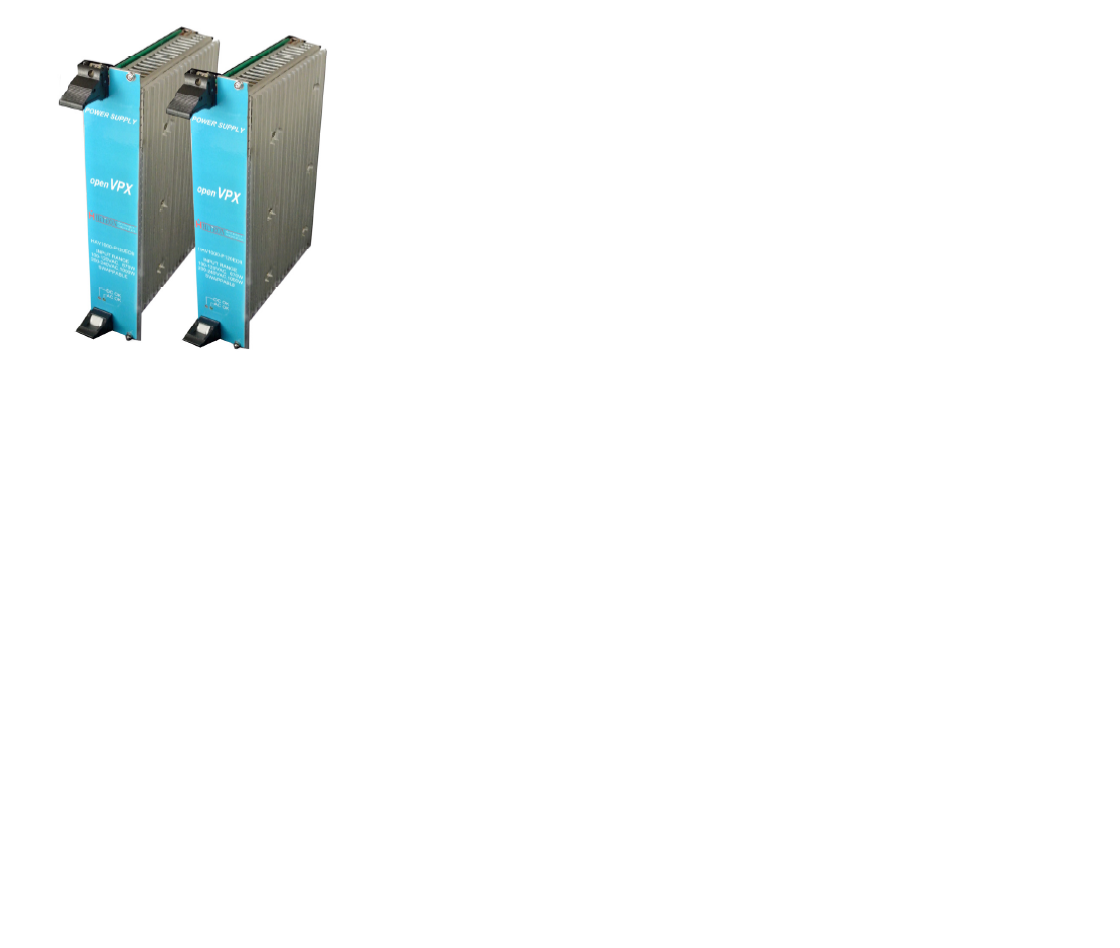

HDV320-24B-T120DE

Features:
  • VITA 62 Compliant 3U x 8HP VPX Power
  • Wide operating temperature -40°C to 85
  • N+1 redundancey
  • Active current sharing
  • EMI meet EN 55032/ Class A
  • Using 125°C Long Life Solid Capacitors
HDV320-24B-T120DE
Specifications:
  • Input Voltage 20-34VDC, nominal 24 VDC
  • Input Current: Typical 15.15A at 24VDC
    Typical 0.55A at 24VDC
  • Inrush Current: Peak 15A at 34VDC
download
