Card Guide A (160mm), ESD clips: cPCI/ VME/ PXI

Features:
  • Card thickness 2.0mm
Card Guide A (160mm), ESD clips: cPCI/ VME/ PXI
Specifications:
 Dimension(mm)  Part No.  Packs of
 160mm  M-CGA160  50
download

Card Guide A (160mm): cPCI/ VME/ PXI/ VPX

Features:
  • Card thickness 2.0mm
  • Colors: Black, gray, red, yellow, green
Card Guide A (160mm): cPCI/ VME/ PXI/ VPX
Specifications:
 Dimension(mm)  Color  Part No.
 160mm  Black  M-CGA160
 Gray  M-CGA160-G
 Red  M-CGA160-RE
 Yellow  M-CGA160-Y
 Green  M-CGA160-GN



download

Rugged Screw-mount Card Guides (160mm) : cPCI, VPX

Features:
  • For card thickness 2.0mm
  • With anti-vibration feature
  • With security screw from top
Rugged Screw-mount Card Guides (160mm) : cPCI, VPX
Specifications:





 Dimension(mm)

 Part No.

 Packs of

 160mm (Top)

 M-CGM160-L

 50

 160mm (Bottom)

 M-CGM160-R

 50

Card Guide B (80mm)-Left: cPCI/ VME/ PXI/ VPX

Features:
  • Card thickness 2.0mm
Card Guide B (80mm)-Left: cPCI/ VME/ PXI/ VPX
Specifications:
 Dimension(mm)  Part No.  Packs of
 80mm  M-CGB80L  50
download

Card Guide B (80mm)-Right: cPCI/ VME/ PXI/ VPX

Features:
  • Card thickness 2.0mm
Card Guide B (80mm)-Right: cPCI/ VME/ PXI/ VPX
Specifications:
 Dimension(mm)  Part No.  Packs of
 80mm  M-CGB-80R  50
download

Card Guide C (220mm or Custom length): cPCI/ VME

Features:
Card Guide C (220mm or Custom length): cPCI/ VME
Specifications:
 Dimension(mm)  Part No.  Packs of
 220mm  M-CGA220  50
 Custom length: xxx (mm)  M-CGAxxx  50
download

Card Guide D: cPCI/ VME/ PXI/ VPX

Features:
  • 160mm, 220mm or Custom length
Card Guide D: cPCI/ VME/ PXI/ VPX
Specifications:
 Dimension(mm)  Part No.  Packs of
 160mm  M-CGD160  50
 220mm  M-CGD220  50
 Custom length: xxx (mm)  M-CGDxxx  50
download

Card Guide for cPCI power supplies: cPCI/ VME

Features:
  • 160mm card guides for cPCI PSU installation
  • Custom length of aluminum extrusion is available
Card Guide for cPCI power supplies: cPCI/ VME
Specifications:
 Dimension(mm)  Part No.  Packs of
 160mm  M-CGE160  50
 Custom length: xxx (mm)  M-CGExxx  50
download

EMC Spring, EMC gasket

Features:
EMC Spring, EMC gasket
Specifications:
 Dimension(U)  Part No.  Packs of
 3  M-J03  10
 6  M-J06  10
download

PCB Holder, Card Holder

Features:
  • Material: ABS or aluminum or die casting
  • Finish:Chrome Plated
PCB Holder, Card Holder
Specifications:
 Dimension(mm)  Part No.  Packs of
 15x9.1x9.7  M-N01  50
 12.8x7.4x8.6  M-N02  50
 12x9x6.5  M-N03  50
 11x10.1x8.6  M-N04  50
download

Microswitch for Injector / Ejector Handle

Features:
Microswitch for Injector / Ejector Handle
Specifications:
 Dimension(mm)  Part No.  Packs of
 25.4  M-M01  50
 50.8  M-M02  50
download

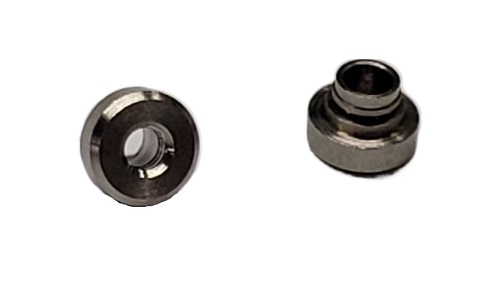

Sleeve, threaded nuts

Features:
  • Metal sleeve, brass, nickel-plated, pressed-in into front panels
Sleeve, threaded nuts
Specifications:
 Dimension(mm)  Part No.
 M2.5 x 1mm  M-101-1
 M2.5 x 2mm  M-102-2
 M2.5 x 5mm  M-103-5
download

Collar Screw, Captive screw: cPCI, VPX, PXI, VME

Features:
  • Steel, nickel-plated
Collar Screw, Captive screw: cPCI, VPX, PXI, VME
Specifications:
 Dimension(mm)  Part No.
 M2.5 x 12.3mm  M-471
download

Front Cross Rail, Front Extrusion: cPCI, VME

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Front Cross Rail, Front Extrusion: cPCI, VME
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-A40A  1
 42  M-A42A  1
 63  M-A63A  1
 84  M-A84A  1
download

Rear Cross Rail-Type A, Internal Extrusion

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Cross Rail-Type A, Internal Extrusion
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-B40A  1
 42  M-B42A  1
 63  M-B63A  1
 84  M-B84A  1
download

Rear Cross Rail-Type B, Internal Extrusion

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Cross Rail-Type B, Internal Extrusion
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-B40B  1
 42  M-B42B  1
 63  M-B63B  1
 84  M-B84B  1
download

Rear Cross Rail-Type C, for Insulating strip

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Cross Rail-Type C, for Insulating strip
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-B40C  1
 42  M-B42C  1
 63  M-B63C  1
 84  M-B84C  1
download

Center Cross Rail, for use of insulating strips

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Center Cross Rail, for use of insulating strips
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-C40  1
 42  M-C42  1
 63  M-C63  1
 84  M-C84  1
download

Guide Cross Rail for card guides

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Guide Cross Rail for card guides
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-D40  1
 42  M-D42  1
 63  M-D63  1
 84  M-D84  1
download

Front Flange, Height Extrusion

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Front Flange, Height Extrusion
Specifications:
 Dimension(U)  Part No.  Packs of
 3  M-E03  1
 4  M-E04  1
 6  M-E06  1
 7  M-E07  1
 9  M-E07  1
download

Rear Flange, Height Extrusion

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Flange, Height Extrusion
Specifications:
 Dimension(U)  Part No.  Packs of
 3  M-F03  1
 4  M-F04  1
 6  M-F06  1
 7  M-F07  1
 9  M-F07  1
download

Tapped Strip, M2.5

Features:
  • Material: CRS
  • Finish:Zinc plated
  • Custom length available
Tapped Strip, M2.5
Specifications:
 Dimension(T)  Part No.  Packs of
 84  M-G84  10
download

Insulating Strip

Features:
  • Material: PVC
  • Custom length available
Insulating Strip
Specifications:
 Dimension(T)  Part No.  Packs of
 84  M-H84  10
download
