products

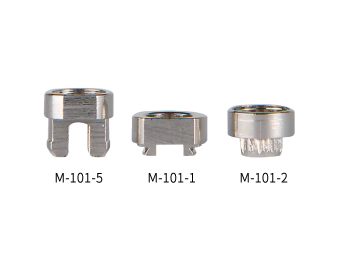

Sleeves (for cPCI/ VME/ PXI front panels)
Features:- Metal sleeve, brass, nickel-plated, pressed-in into front panels
Specifications:
| Dimension(mm) | Part No. |
| M2.5 x 1mm | M-101-1 |
| M2.5 x 2mm | M-101-2 |
| M2.5 x 5mm | M-101-5 |

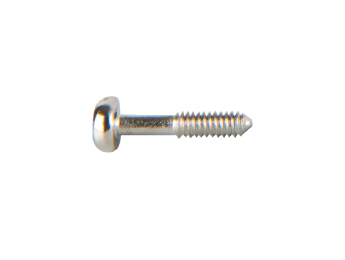

Collar Screw, Captive screw: cPCI, VPX, PXI, VME
Features:- Steel, nickel-plated
Specifications:
| Dimension(mm) | Part No. |
| M2.5 x 12.3mm | M-471 |

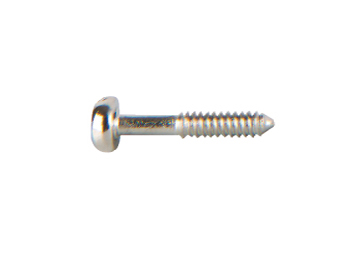

Collar Screw (for cPCI, PXI, VPX, VME backplanes)
Features:- Material: Steel with nickel plating Used for backplanes
Specifications:
| Dimension(mm) | Part No. | Packs of |
| M2.5 x 15mm | M-472 | 50 |

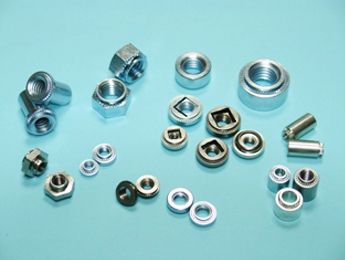

Self-locking threads Nuts, Nuts with Nylon Insert
Features:Customized fasteners, including:
- Floating fasteners
- Floating self-locking fasteners
- Self-clinching nuts
- Nuts for stainless steel sheets
- Broaching type nuts
- Self-locking fasteners
- Nylon insert self-locking nuts
Specifications:

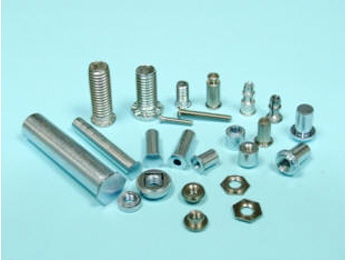

Self-Clinching Nuts & Studs & Standoffs
Features:Customized fasteners, including:
- Floating fasteners
- Floating self-locking fasteners
- Blind fasteners
- Concealed-head studs
- Concealed-head standoffs
- Thin sheet self-clinching nuts
- Self-clinching flush-head studs
- Self-clinching non-flush studs
- Self-clinching high-strength studs
- Low displacement hear studs
- Studs for stainless steel sheets
- Flush-mounted pilot pins
- Broaching type standoffs
- Flare-mounted standoffs
- Grounding standoffs
- Self-locking fasteners
- Flush-mounted panel screws
- Thru-hole, threaded standoffs
- Blind, threaded standoffs
- Standoffs for stainless steel
- Standoffs for thin sheets
- Threaded standoffs
Specifications:
Panel Fastener Assemblies
Features:Customized panel fasteners, including:
- Captive screws
- Captive nuts
- Miniature captive screws
- Panel fastener assemblies
- Philips drive panel assemblies
- Low-profile panel fasteners
- Knurled cap type
- Smooth cap type
- Universal slot
- Philips recess
- Broaching type panel fastener assemblies
- Self-clinching panel fastener assemblies
Specifications:

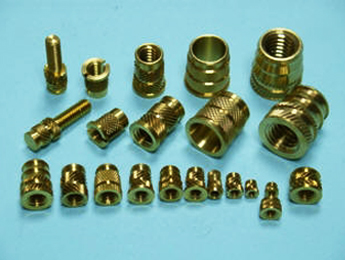

Threaded Inserts
Features:Customized fasteners, including:
- Ultrasonic/ Heat staking threaded inserts
- Molded-in threaded inserts
- Press-in threaded inserts
- Floating self-locking fasteners
Specifications:

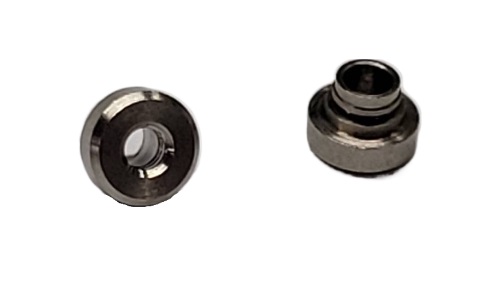

Z61-201
Features:Steel, nickel-plated
Used for front panels or front filler panels
Specifications:
| Dimension(mm) | Part No. |
| M2.5 x 1.5mm | Z61-201 |

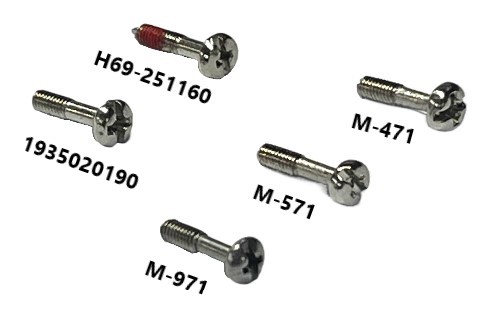

Collar Screw, Captive screw: cPCI, VPX, PXI, VME
Features:Used for front panels or front filler panels
M-471 : Steel, nickel-plated
M-571 : Steel, nickel-plated
M-971 : Stainless Steel
H69-251160 : Steel, nickel-plated
(NYLOK RED)
M1935020190 : Steel, nickel-plated
Specifications:
| Dimension(mm) | Part No. |
| M2.5 x 12.3mm | M-471 |
| M2.5 x 13.2mm | M-571 |
| M2.5 x 12.3mm | M-971 |
| M2.5 x 13.2mm | H69-251160 |
| M2.5 x 12mm |
1935020190 |
