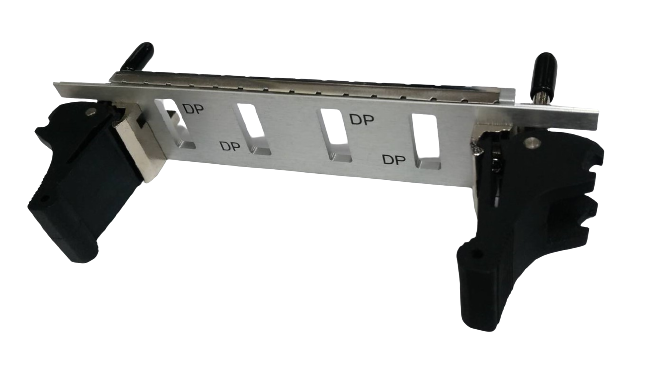

VPX/ Open VPX 3U/6U front panels

Features:



·         Material:  2.5mm aluminum extrusion

·         Finish:  Alochrom

·         Includes: Panel,ejector handles,EMC gaskets, collars with captive screw







VPX/ Open VPX 3U/6U front panels
Specifications:

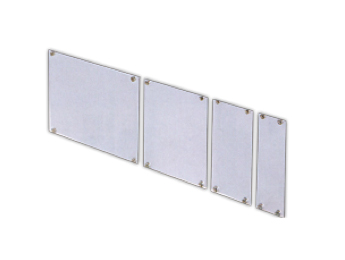

ALUMINUM PANELS

Features:

 ·         Aluminium panels for rack mount system. Available in silver/ black anodized or painted or chromate.

  ·     CNC Milling, printing and customizations are available for your original front / rear panels. EMC/ EMI gaskets are available.







ALUMINUM PANELS
Specifications:

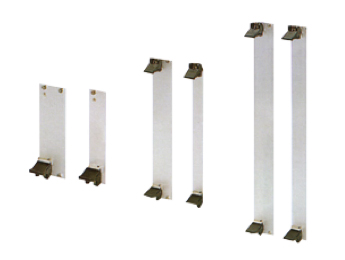

EMC Front panels(FP): CompactPCI, cPCI, VPX, PXI

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Alochrom
  • Includes:Panel,ejector handles,EMC gaskets, collars with captive screw
EMC Front panels(FP): CompactPCI, cPCI, VPX, PXI
Specifications:
U  HP  a  b  c  Part No.
3  4  20 --   FP-304-A
 5  -- 25.1   FP-305-A
 6  -- 30.1   FP-306-A
 8  -- 40.3 25.4 FP-308-A
 12  -- 60.6 45.7 FP-312-A
6  4  20 --   FP-604-A
 5  -- 25.1   FP-605-A
 6  -- 30.1   FP-606-A
 8  -- 40.3 25.4 FP-608-A
 12  -- 60.6   FP-612-A
9  4  20 --   FP-904-A
 5  -- 25.1   FP-905-A
 6  -- 30.1   FP-906-A
 8  -- 40.3   FP-908-A
 12  -- 60.6   FP-912-A



download

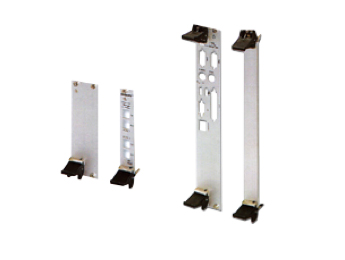

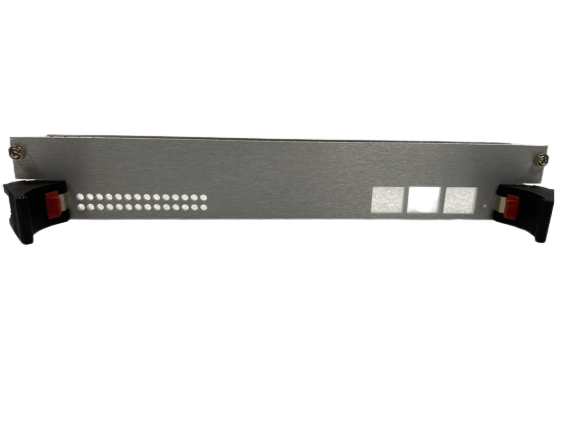

cPCI front panels with cutout: cPCI, VPX, PXI

Features:
  • Custom cutouts and silkscreen available within 2 Weeks
cPCI front panels with cutout: cPCI, VPX, PXI
Specifications:
U  HP  a  b  c  Part No.
3  4  20 --   FP-304-AC
 5  -- 25.1   FP-305-AC
 6  -- 30.1   FP-306-AC
 8  -- 40.3 25.4 FP-308-AC
 12  -- 60.6 45.7 FP-312-AC
6  4  20 --   FP-604-AC
 5  -- 25.1   FP-605-AC
 6  -- 30.1   FP-606-AC
 8  -- 40.3 25.4 FP-608-AC
 12  -- 60.6   FP-612-AC
9  4  20 --   FP-904-AC
 5  -- 25.1   FP-905-AC
 6  -- 30.1   FP-906-AC
 8  -- 40.3   FP-908-AC
 12  -- 60.6   FP-912-AC



download

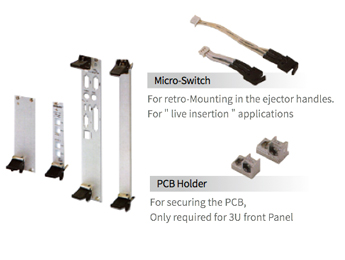

cPCI Front panels with microswitch: cPCI, VPX, PXI

Features:
cPCI Front panels with microswitch: cPCI, VPX, PXI
Specifications:
U  HP  a  b  c  Part No.
3  4  20 --   FP-304-AHS
 5  -- 25.1   FP-305-AHS
 6  -- 30.1   FP-306-AHS
 8  -- 40.3 25.4 FP-308-AHS
 12  -- 60.6 45.7 FP-312-AHS
6  4  20 --   FP-604-AHS
 5  -- 25.1   FP-605-AHS
 6  -- 30.1   FP-606-AHS
 8  -- 40.3 25.4 FP-608-AHS
 12  -- 60.6   FP-612-AHS
9  4  20 --   FP-904-AHS
 5  -- 25.1   FP-905-AHS
 6  -- 30.1   FP-906-AHS
 8  -- 40.3   FP-908-AHS
 12  -- 60.6   FP-912-AHS



download

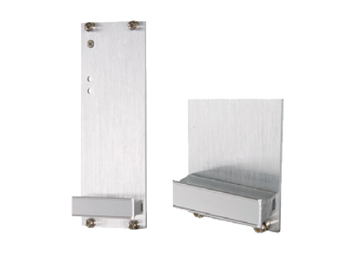

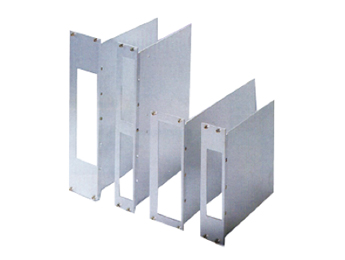

U-Shaped EMC Filler panel: cPCI, VPX, PXI, VME

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Chromate Conversion Coated
  • Inclusion:Panel,EMC gaskets,collars with captive screw
  • Customization is available
U-Shaped EMC Filler panel: cPCI, VPX, PXI, VME
Specifications:
U  3  6 9
 H(m/m)  128.7 262.05 395.4



HP 2 4 5 6 8 12 16 20 24 32
H(m/m) 10.1 20 25.1 30.1 40.3 60.6 81.2 101.24 121.56 162.2



download

Flat front panels with extruded handle: VME, VXI

Features:
  • Material: flat front panel, 2.5mm aluminum or aluminum extrusion
  • Finish: Alochrom or anodized; or front anodized, rear conductive, or painted
  • Includes: handles, PCB holders, collars with captive screws
Flat front panels with extruded handle: VME, VXI
Specifications:
U  3  6 9
 H(m/m)  128.7 262.05 395.4



HP 4 5 6 8 12 16 20 24 32
H(m/m) 20 25.1 30.1 40.3 60.6 81.2 101.24 121.56 162.2



download

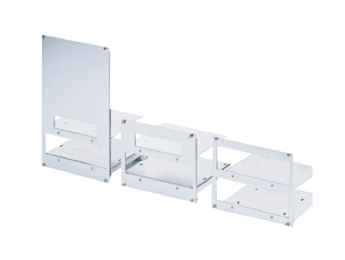

EMC Device holders, Drive modules

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Chromate Conversion Coated
  • Inclusion:Panel,drive plate,EMC gaskets, collars with captive screw
  • Customization is available
EMC Device holders, Drive modules
Specifications:
U HP Number of device Depth of device Part No.
4 8  1x3.5" 137mm DH-408
4 12 1x5.25" 137mm DH-412
6 8 2x3.5" 137mm DH-608
6 12 1x5.25" 137mm DH-612
6 32 4x5.25" 137mm DH-632



download

EMC Device holders, Drive moudles

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Chromate Conversion Coated
  • Inclusion:Panel,drive plate,EMC gaskets, collars with captive screw
  • Customization is available
EMC Device holders, Drive moudles
Specifications:
U HP Number of device Depth of device Part No.
3 32 2x5.25" 137mm DH-632B
3 32 1x3.25" and 1x5.25" 137mm DH-632C
6 32 1x3.25" and 1x5.25" 137mm DH-632D

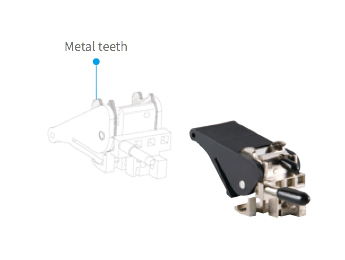

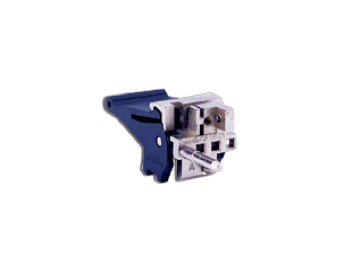

Bottom Injector Ejector Handle(A2): cPCI, VPX, PXI

Features:
  • Patented "Metal Teeth" eliminates damages caused by repeated ejections/injections
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
  • Use for CompactPCI/ cPCI/ VPX/ PXI front panels
Bottom Injector Ejector Handle(A2): cPCI, VPX, PXI
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHA2 10
with microswitch  M-EHAHS2 10



download

Top Injector Ejector Handle(B2): cPCI, VPX, PXI

Features:
  • Patented "Metal Teeth" eliminates damages caused by repeated ejections/injections
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
  • Use for CompactPCI/ cPCI/ VPX/ PXI front panels
Top Injector Ejector Handle(B2): cPCI, VPX, PXI
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHB2 10
with microswitch  M-EHBHS2 10



download

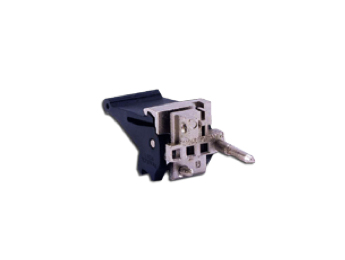

Bottom Injector Ejector Handle(A): cPCI, VPX, PXI

Features:
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
  • Use for CompactPCI/ cPCI/ VPX/ PXI front panels
Bottom Injector Ejector Handle(A): cPCI, VPX, PXI
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHA 10
with microswitch  M-EHAHS 10



download

TOP Injector Ejector Handle(B): cPCI, VPX, PXI

Features:
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
  • Use for CompactPCI/ cPCI/ VPX/ PXI front panels
TOP Injector Ejector Handle(B): cPCI, VPX, PXI
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHB 10
with microswitch  M-EHBHS 10



download

CPCI Front Panel with Required Ejector Handle

Features:

Custom cutouts per Required Handle

Silkscreen available


CPCI Front Panel with Required Ejector Handle
Specifications:



  • Material:2.5mm aluminum extrusion
  • Finish: Alochrom or anodized; or front anodized, rear conductive, or painted
  • Includes:Panel, Required ejector handles,EMC gaskets, collars with captive screw
download

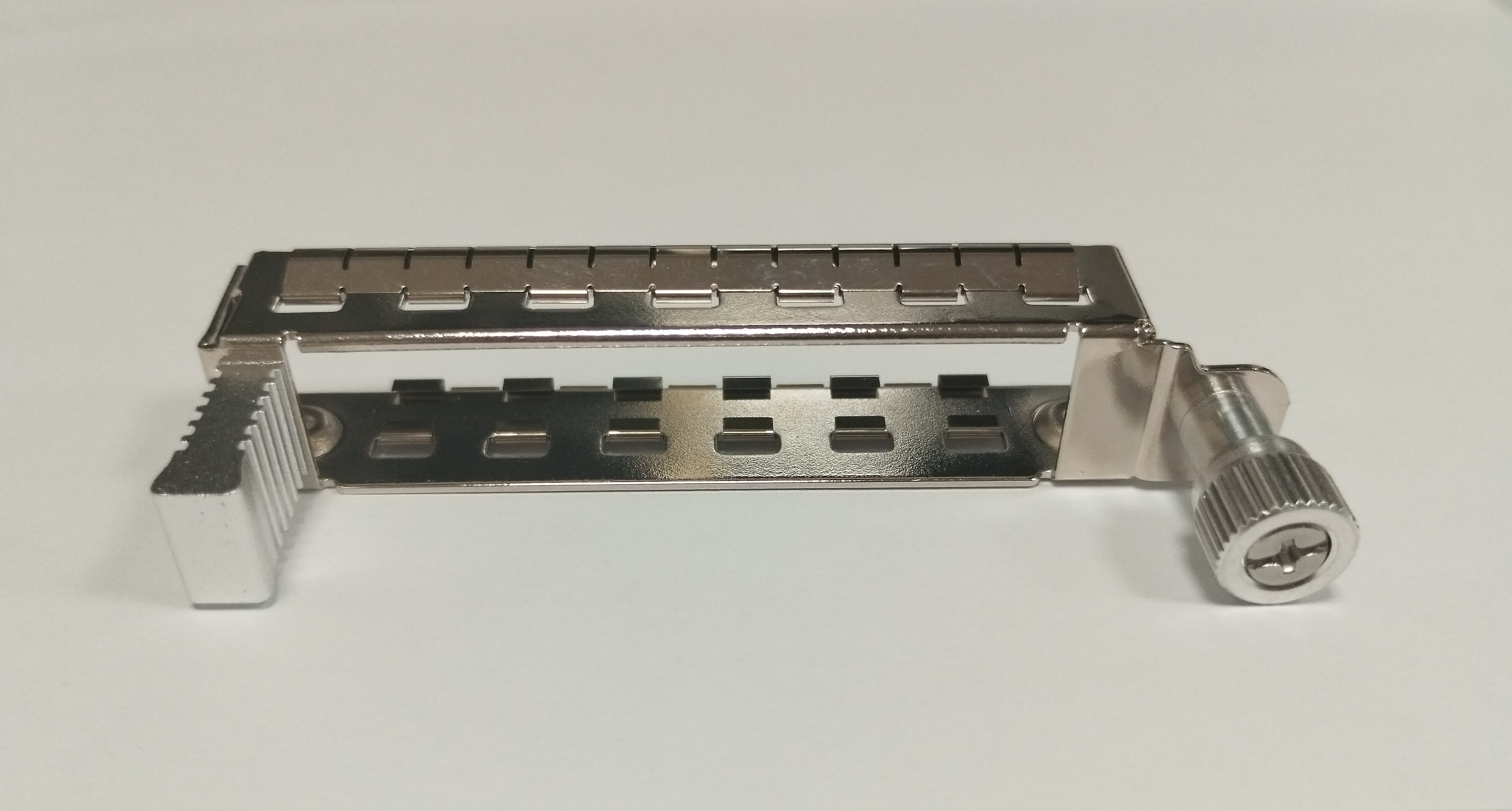

OCP 3.0 bracket

Features:



OCP 3.0 Bracket — Specification

·         Material: Cold-rolled steel (CRS) with nickel plated

·         Thickness: 0.8 mm – 1.2 mm

·         Form Factor: Available in SFF (Small Form Factor) and LFF (Large Form Factor) dimensions

·         Mounting Options: Supports thumbscrew or latch fastening

·         Compliance:

o    EMI shielding requirements

o    Thermal dissipation considerations

o    RoHS Directive compliance

OCP 3.0 bracket
Specifications:

OCP 3.0 bracket

Features:

OCP 3.0 Bracket — Specification

·         Material: Cold-rolled steel (CRS) with nickel plated

·         Thickness: 0.8 mm – 1.2 mm

·         Form Factor: Available in SFF (Small Form Factor) and LFF (Large Form Factor) dimensions

·         Mounting Options: Supports thumbscrew or latch fastening

·         Compliance:

o    EMI shielding requirements

o    Thermal dissipation considerations

o    RoHS Directive compliance

OCP 3.0 bracket
Specifications:
