鋁合金標準面板(含助拔器): cPCI, PXI, VPX

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Alochrom
  • Includes:Panel,ejector handles,EMC gaskets, collars with captive screw
鋁合金標準面板(含助拔器): cPCI, PXI, VPX
Specifications:
U  HP  a  b  c  Part No.
3  4  20 --   FP-304-A
 5  -- 25.1   FP-305-A
 6  -- 30.1   FP-306-A
 8  -- 40.3 25.4 FP-308-A
 12  -- 60.6 45.7 FP-312-A
6  4  20 --   FP-604-A
 5  -- 25.1   FP-605-A
 6  -- 30.1   FP-606-A
 8  -- 40.3 25.4 FP-608-A
 12  -- 60.6   FP-612-A
9  4  20 --   FP-904-A
 5  -- 25.1   FP-905-A
 6  -- 30.1   FP-906-A
 8  -- 40.3   FP-908-A
 12  -- 60.6   FP-912-A



download

鋁合金客製面板(含助拔器、網印、開孔): cPCI, PXI, VPX

Features:
  • Custom cutouts and silkscreen available within 2 Weeks
鋁合金客製面板(含助拔器、網印、開孔): cPCI, PXI, VPX
Specifications:
U  HP  a  b  c  Part No.
3  4  20 --   FP-304-AC
 5  -- 25.1   FP-305-AC
 6  -- 30.1   FP-306-AC
 8  -- 40.3 25.4 FP-308-AC
 12  -- 60.6 45.7 FP-312-AC
6  4  20 --   FP-604-AC
 5  -- 25.1   FP-605-AC
 6  -- 30.1   FP-606-AC
 8  -- 40.3 25.4 FP-608-AC
 12  -- 60.6   FP-612-AC
9  4  20 --   FP-904-AC
 5  -- 25.1   FP-905-AC
 6  -- 30.1   FP-906-AC
 8  -- 40.3   FP-908-AC
 12  -- 60.6   FP-912-AC



download

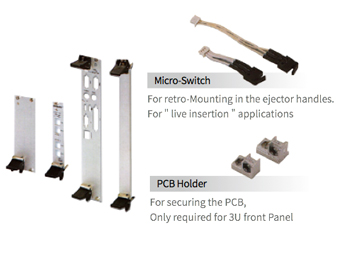

鋁合金客製面板(含助拔器、網印、開孔、微動開關): cPCI, PXI, VPX

Features:
鋁合金客製面板(含助拔器、網印、開孔、微動開關): cPCI, PXI, VPX
Specifications:
U  HP  a  b  c  Part No.
3  4  20 --   FP-304-AHS
 5  -- 25.1   FP-305-AHS
 6  -- 30.1   FP-306-AHS
 8  -- 40.3 25.4 FP-308-AHS
 12  -- 60.6 45.7 FP-312-AHS
6  4  20 --   FP-604-AHS
 5  -- 25.1   FP-605-AHS
 6  -- 30.1   FP-606-AHS
 8  -- 40.3 25.4 FP-608-AHS
 12  -- 60.6   FP-612-AHS
9  4  20 --   FP-904-AHS
 5  -- 25.1   FP-905-AHS
 6  -- 30.1   FP-906-AHS
 8  -- 40.3   FP-908-AHS
 12  -- 60.6   FP-912-AHS



download

機箱檔板，填充面板: cPCI, PXI, VPX, VME

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Chromate Conversion Coated
  • Inclusion:Panel,EMC gaskets,collars with captive screw
  • Customization is available
機箱檔板，填充面板: cPCI, PXI, VPX, VME
Specifications:
U  3  6 9
 H(m/m)  128.7 262.05 395.4



HP 2 4 5 6 8 12 16 20 24 32
H(m/m) 10.1 20 25.1 30.1 40.3 60.6 81.2 101.24 121.56 162.2



download

平面板含鋁擠把手:VME，VXI

Features:
  • Material: flat front panel, 2.5mm aluminum or aluminum extrusion
  • Finish: Alochrom or anodized; or front anodized, rear conductive, or painted
  • Includes: handles, PCB holders, collars with captive screws
平面板含鋁擠把手:VME，VXI
Specifications:
U  3  6 9
 H(m/m)  128.7 262.05 395.4



HP 4 5 6 8 12 16 20 24 32
H(m/m) 20 25.1 30.1 40.3 60.6 81.2 101.24 121.56 162.2



download

EMC Device holders

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Chromate Conversion Coated
  • Inclusion:Panel,drive plate,EMC gaskets, collars with captive screw
  • Customization is available

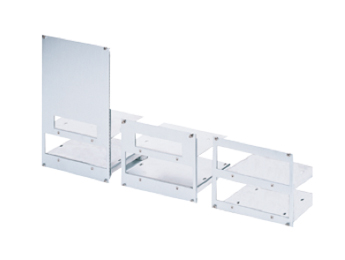

EMC Device holders
Specifications:
U HP Number of device Depth of device Part No.
4 8  1x3.5" 137mm DH-408
4 12 1x5.25" 137mm DH-412
6 8 2x3.5" 137mm DH-608
6 12 1x5.25" 137mm DH-612
6 32 4x5.25" 137mm DH-632



download

EMC Device holders

Features:
  • Material:2.5mm aluminum extrusion
  • Finish:Chromate Conversion Coated
  • Inclusion:Panel,drive plate,EMC gaskets, collars with captive screw
  • Customization is available
EMC Device holders
Specifications:
U HP Number of device Depth of device Part No.
3 32 2x5.25" 137mm DH-632B
3 32 1x3.25" and 1x5.25" 137mm DH-632C
6 32 1x3.25" and 1x5.25" 137mm DH-632D



download

提把手，助拔器 (A2): cPCI, PXI, VPX

Features:
  • Patented "Metal Teeth" eliminates damages caused by repeated ejections/injections
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
提把手，助拔器 (A2): cPCI, PXI, VPX
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHA2 10
with microswitch  M-EHAHS2 10



download

提把手，助拔器 (B2): cPCI, PXI, VPX

Features:
  • Patented "Metal Teeth" eliminates damages caused by repeated ejections/injections
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
提把手，助拔器 (B2): cPCI, PXI, VPX
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHB2 10
with microswitch  M-EHBHS2 10



download

提把手，助拔器 (A): cPCI, PXI, VPX

Features:
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
提把手，助拔器 (A): cPCI, PXI, VPX
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHA 10
with microswitch  M-EHAHS 10



download

提把手，助拔器 (B): cPCI, PXI, VPX

Features:
  • Material: 1) Die-Cast block . 2) PBT handle
  • Finish:Nickel plated for block
提把手，助拔器 (B): cPCI, PXI, VPX
Specifications:
Dimension Part No. Packs of
without micro switch  M-EHB 10
with microswitch  M-EHBHS 10



download

CPCI Front Panel with Required Ejector Handle

Features:

Custom cutouts per Required Handle

Silkscreen available

CPCI Front Panel with Required Ejector Handle
Specifications:



  • Material:2.5mm aluminum extrusion
  • Finish: Alochrom or anodized; or front anodized, rear conductive, or painted
  • Includes:Panel, Required ejector handles,EMC gaskets, collars with captive screw

OCP 3.0 支架 - 0004

Features:



OCP 3.0 支架 — 規格

·         材質：冷軋鋼（CRS），鍍鎳

·         厚度：0.8 mm – 1.2 mm

·         外形尺寸：提供 SFF與 LFF版本

·         固定方式：支援手轉螺絲（thumbscrew）或卡扣（latch）固定

·         符合規範：

o    EMI 電磁屏蔽需求

o    散熱性能考量

o    符合 RoHS 指令

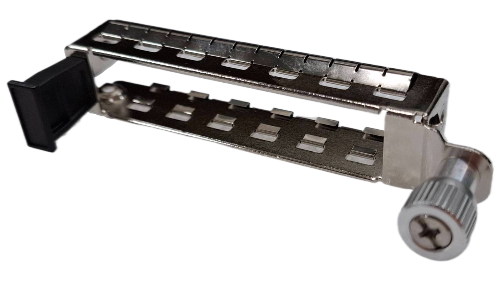

OCP 3.0 支架 - 0004
Specifications:

OCP 3.0 支架 - 0001

Features:

OCP 3.0 支架 — 規格

·         材質：冷軋鋼（CRS），鍍鎳

·         厚度：0.8 mm – 1.2 mm

·         外形尺寸：提供 SFF與 LFF版本

·         固定方式：支援手轉螺絲（thumbscrew）或卡扣（latch）固定

·         符合規範：

o    EMI 電磁屏蔽需求

o    散熱性能考量

o    符合 RoHS 指令

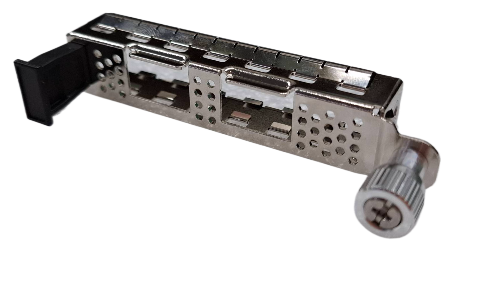

OCP 3.0 支架 - 0001
Specifications:
