3U2S PWR Backplane

Features:
  • Compliant to VITA 62
  • Input (Max) : 80A
  • M3 studs power entry
  • Power Input :
    +DC_IN/ACL
    -DC_IN/ACN
    CHASSIS GND
  • Power Output :
    PO1(Vs1) : +12 VDC@40A
    PO2(Vs2) : +3.3 VDC@40A
    PO3(Vs3) : +5 VDC@40A
    +3.3_AUX@6A
    +12VAUX@1A
    -12VAUX@1A
3U2S PWR Backplane
Specifications:
  • PCB size : 128.7 mm x 49.6 mm x 5.4 mm
  • 5 HP(25.40 mm) from slot to slot
  • Operating temperature: -40° - +85°C
  • torage temperature: -55°C - +85°C

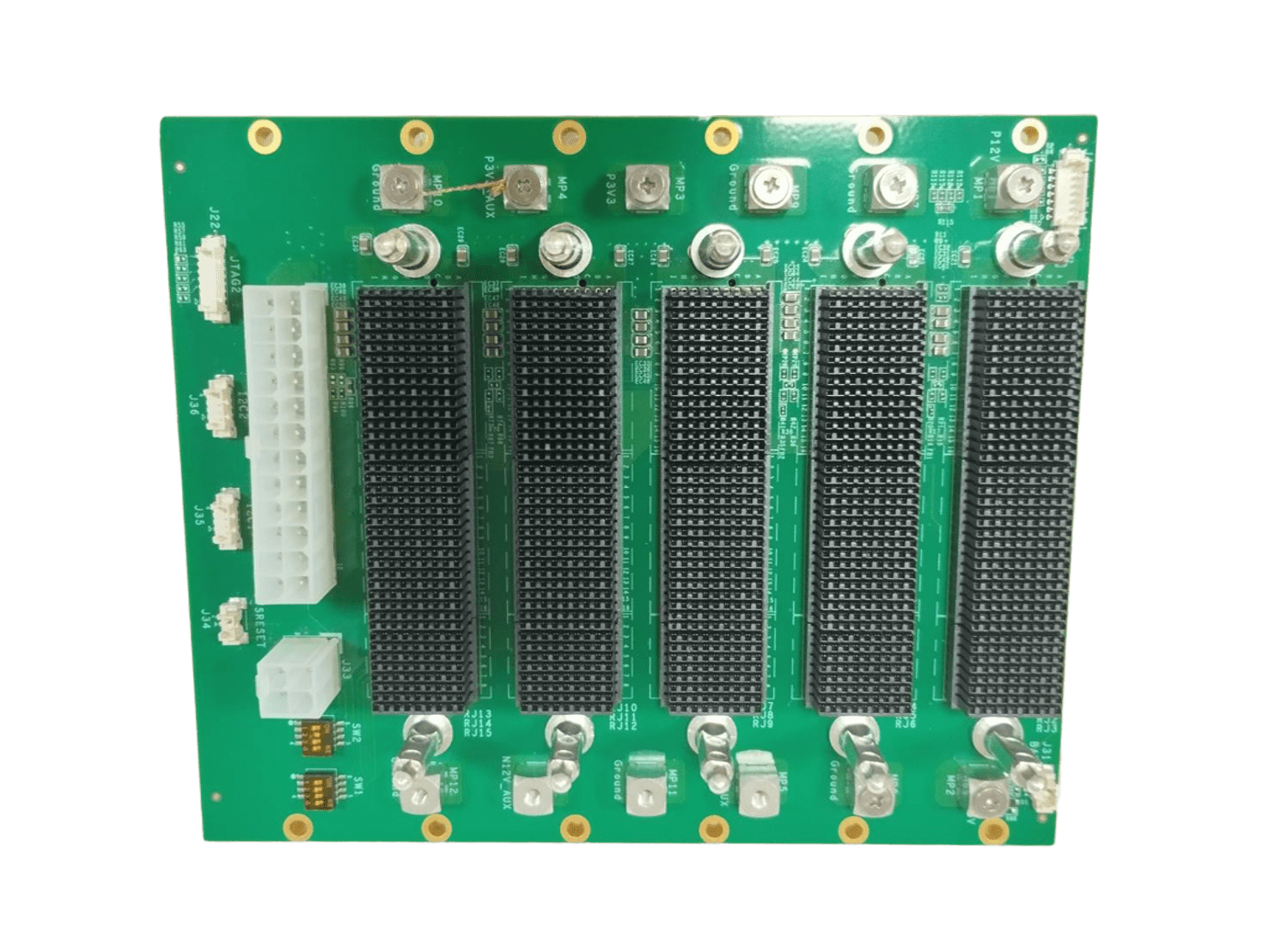

Rugged VPX Backplane

Features:



  • 1.Compliant to VITA 46.0 Baseline.
  • 2.Compliant to VITA 62.
  • 3.IOPEN VPX 65.0 Standard.
  • 4.Rugged 3U Euro card form factor.
  • 5.ESD Ground protection.
  • 6.High-speed Multi-gig connector.
Rugged VPX Backplane
Specifications:

 1.1 16 years.

1.2 1 oz. copper power and ground.

1.3 3.2 mm think PCB, FR4 or equivalent.

Profiles

2.1 BKP3-CEN03-15.2.9-n.

2.2 Slot 1 Compliant SLT3-PAY-2F-14.2.7.

2.3 Slot 2,3 Compliant SLT3-PER-1F-14.3.2.

Power Requirement

3.1 DC +12V

3.2 DC +5V

3.3 DC +3.3V

Temperature

4.1 Operating Temperatures: 0° to +60 °C

4.2 Storage Temperatures : -40° to +85 °C

Mechanical Dimension

5.1 Dimensions (WxH) : 130 x 140 mm

5.2 Customization is available.

3U VPX Backplane:3U 2-Slot

Features:
  • Compliant to VITA 46.0 baseline specification
  • Backplane Profile : BKP3-DIS02-15.2.8-n
  • OPEN VITA 65 Specification
  • 1 x Double Fat Pipe(Mesh) Data Plane
  • 2 Slots VPX, 1 Payload Slot , 1 Peripheral Slot
  • M3 studs power entry
  • Reference clock
  • Aux clock
  • System Management Interface(I2CA, I2CB)
  • Input current per backplane
    VS1 = 18A
    VS2 = 18A
    VS3 = 30A
  • Order Number: B203202001
  • Customization available
3U VPX Backplane:3U 2-Slot
Specifications:
  • PCB size : 128.5 mm x 51.56 mm x 5.4 mm
  • 5 HP(25.40 mm) from slot to slot
  • Operating temperature: -40° - +85°C
  • Storage temperature: -55°C - +85°C

3U VPX Backplane:3U 3-Slot

Features:
  • Compliant to VITA 46.0 baseline specification
  • OPEN VITA 65 Specification
  • Backplane Profile: BKP3-CEN03-15.2.9-n
  • 2 x Fat Pipe(Star) Data Plane
  • 3 Slots VPX, 1 Payload Slot, 2 Peripheral Slot
  • M3 studs power entry
  • Reference clock
  • Aux clock
  • Input current per backplane
    VS1 = 28A
    VS2 = 28A
    VS3 = 30A
  • Order Number: B203302001
  • Customization available
3U VPX Backplane:3U 3-Slot
Specifications:
  • PCB size: 128.5 mm x 76.96 mm x 5.4 mm
  • 5 HP (25.40 mm) from slot to slot
  • Operating temperature: -40° - +85°C
  • Storage temperature: -55°C - +85°C
